Synthetic Pasting Belt
Specification
Raw Material: 100% synthetic
Application: battery pasting machines
Thickness : any thickness could be customized
Type: Endless
Wide Range Of Process Design:
1. Especially designed large-scale industrial battery pasting belt with length up from 3000MM to 5000MM and width up from 500MM to 700MM.
2. Mature and sturdy 2500MM series single-sided pasting belt, the surface is made of cotton+synthetic.
3. Developed the innovative 1700MM-2000MM series of the double-pasting belts. The surface is made of synthetic fiber.
Excellent characteristics
1. The evenly pasted, the weight deviation is ±2 g
2. No deformation, use elongation less than 3%
3. Long service life, can be pasted with 1 million pieces of plates at most.
4. Good water absorption, soft and hard cream are applicable.
The above performance has reached the international advanced level
Specification
|
Product Name |
Endless Pasting Belt |
|
Raw material |
Synthetic/Cotton |
|
Appearance |
No scratches / accidented on the surface, no lint; Fringe tidy, no rough selvage; Uniform thickness; |
|
Thickness(MM) |
6-10MM |
|
Width(MM) |
220,230,330,356,365,420,508,660,762, or As Customers’ Demands |
|
Diameter(MM) |
1770,1800,1870,1905,1930,2540,2566,3784,3900, or As Customers’ Demands |
|
Tolerance |
Length: ±0.5% , Width: ±2MM , Thickness: ±0.3MM |

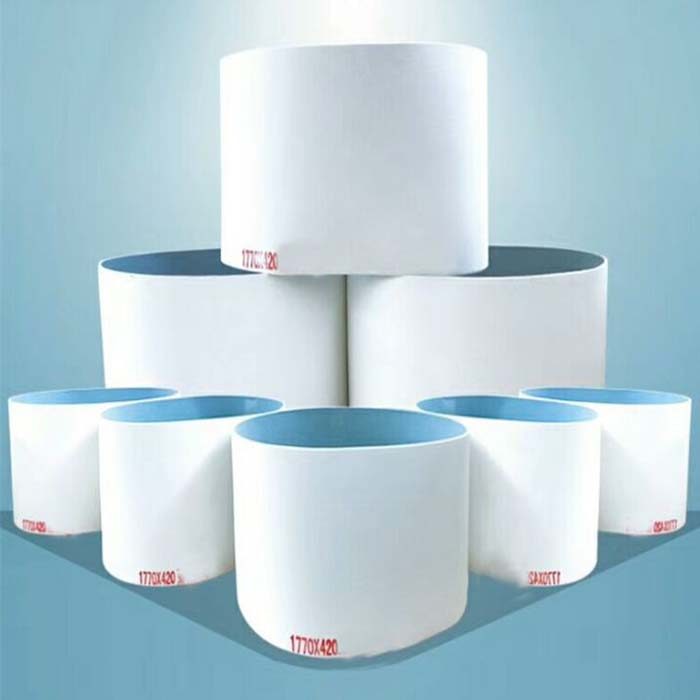

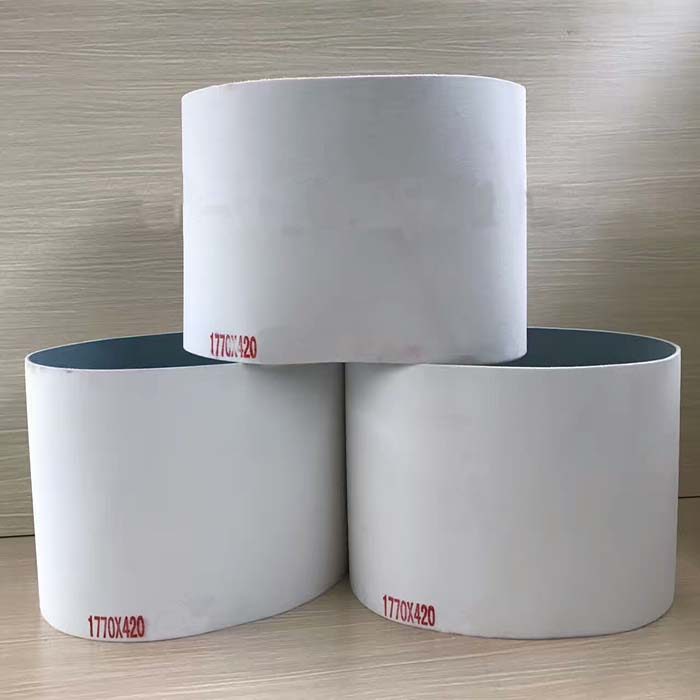

Product Picture
Product Application:

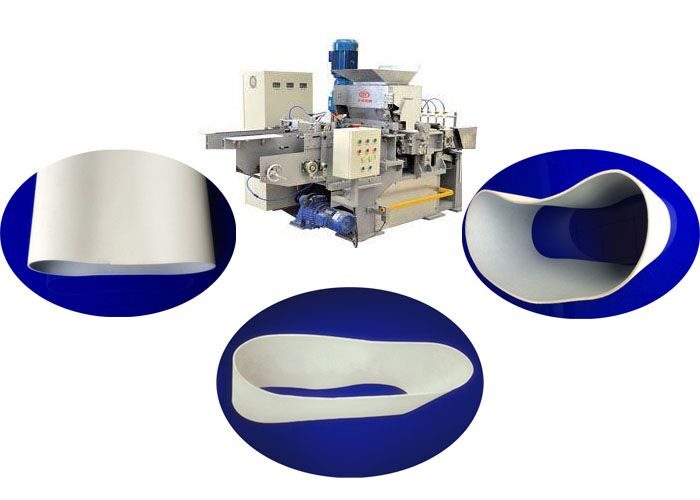

In the production process of the battery, pasting plates is a very important part of the process. There will be needed a conveyor belt to carry the plates to the position of the paste, that conveyor belt is called Battery Pasting Belt.
