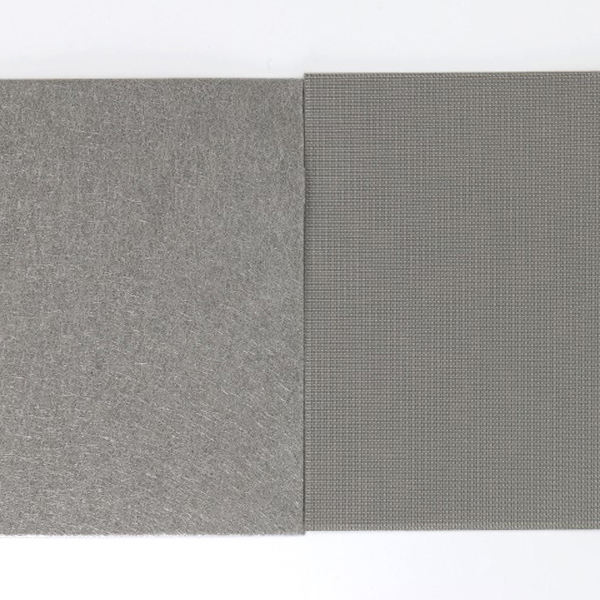

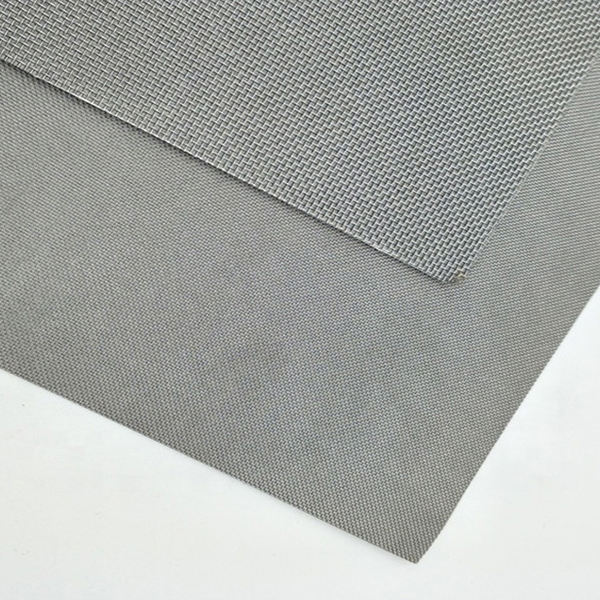

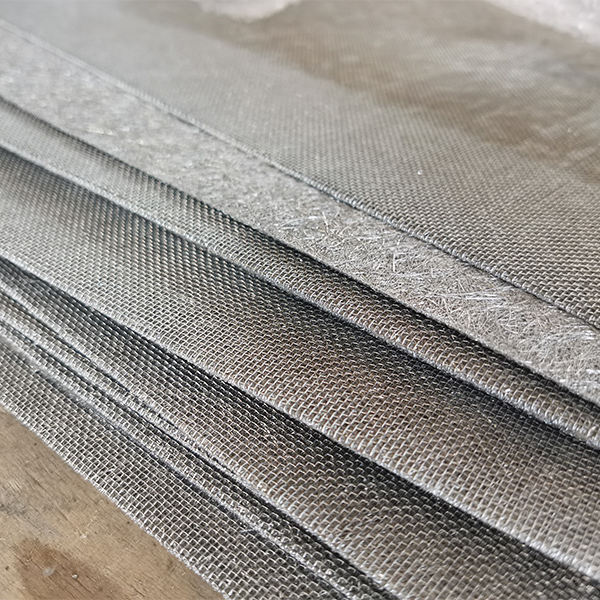

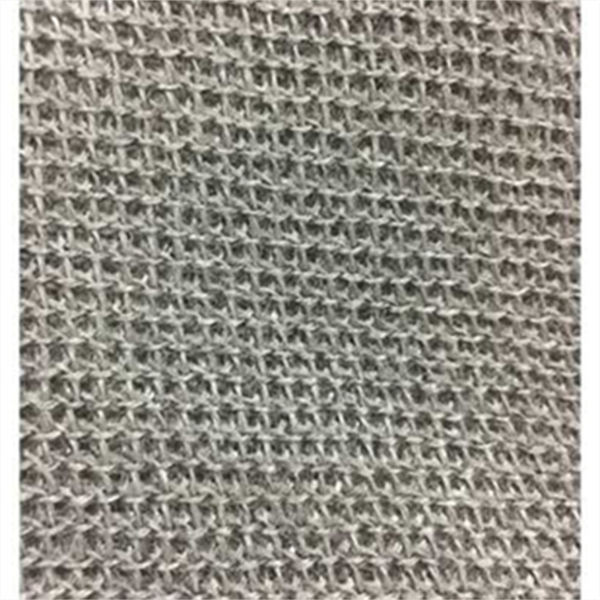

Sintered Metal Fiber Felt

As a high-performance porous industrial material, Sintered Metal Fiber Felt has been widely recognized in global industrial fields due to its unique structure, stable performance and diverse applications. It is manufactured through a professional high-temperature sintering process, where fine metal fibers are laid randomly and then fused at their contact points in a vacuum or protective atmosphere, forming a robust three-dimensional porous network structure. This article comprehensively introduces the core features, regular specifications, key applications and product advantages of Sintered Metal Fiber Felt, integrating all core keywords to help overseas customers quickly understand the product and make rational purchasing decisions.

1. Core Features of Sintered Metal Fiber Felt

Sintered Metal Fiber Felt stands out from traditional filtration and protection materials with its excellent comprehensive performance, which is closely related to its unique sintering process and high-quality raw materials. Its core features are as follows:

• Excellent High-Temperature Resistance: Depending on the raw material, the long-term service temperature ranges from 650℃ to 1100℃. 316L stainless steel sintered felt can withstand ≤650℃, 310S stainless steel sintered felt up to 800℃, and FeCrAl sintered felt can reach 900-1100℃, which can stably operate in high-temperature environments such as industrial furnaces and high-temperature flue gas filtration without embrittlement or damage[9].

• Superior Filtration Performance: It has uniform and controllable pore size, with filtration precision ranging from 0.1μm to 100μm. The multi-layer gradient structure design can achieve high-efficiency depth filtration, effectively trapping solid particles, impurities and contaminants in gases or liquids, with a filtration efficiency of up to 99%[5]. At the same time, it has high porosity (60%-90%) and excellent permeability, ensuring low pressure drop and large flow rate during filtration[10].

• High Strength and Durability: The fiber contact points are fused into a whole through high-temperature sintering, forming a stable three-dimensional network skeleton, which gives the product high rigidity, tensile strength and wear resistance. It can withstand high pressure and impact without deformation, and has a longer service life than traditional filter paper and filter cloth. In addition, it can be cleaned and reused through ultrasonic cleaning, chemical immersion and other methods, reducing production and maintenance costs[11].

• Strong Corrosion Resistance: The main raw materials include 316L, 310S stainless steel, FeCrAl, nickel-based alloy, titanium and other corrosion-resistant metals, which can resist the erosion of acids, alkalis, organic solvents and other corrosive media, and are suitable for harsh working environments such as petrochemical industry and marine fields[8].

• Customizable Versatility: All specifications such as thickness, density, pore size, size and shape can be customized according to customer needs. It can be processed into filter elements (filter cartridges, filter discs), special-shaped gaskets, roller covers and other finished products, adapting to the personalized needs of different industries and production lines[8].

2. Regular Specifications and Parameters

We adopt standardized production processes and strict quality control to ensure the consistency and stability of product specifications. The following are the regular specifications and parameters of mainstream Sintered Metal Fiber Felt products, which can be customized according to customer actual needs:

Note: The above are regular specifications. We can customize parameters such as thickness, size, filtration precision and porosity according to your specific application scenarios and requirements. The standard size can also be adjusted to 1180×1500mm, 1500×1200mm and other specifications as needed[8].

3. Key Applications of Sintered Metal Fiber Felt

With excellent performance, Sintered Metal Fiber Felt is widely used in high-temperature filtration, automotive glass production, petrochemical industry, new energy and other fields, providing reliable solutions for global industrial production. The key applications are as follows:

3.1 High-Temperature Filtration and Environmental Protection Industry

This is the core application field of Sintered Metal Fiber Felt. It is mainly used for high-temperature gas and fluid filtration, such as power plant flue gas filtration, waste incineration dust removal, petrochemical fluid purification, industrial boiler flue gas treatment and automotive exhaust filtration[8]. Its high-temperature resistance and high filtration precision can effectively remove harmful particles and contaminants, meet global environmental protection standards, and at the same time, it can be cleaned and reused, reducing environmental protection costs. For example, in waste incineration plants, FeCrAl sintered felt is used to filter high-temperature flue gas (up to 1000℃), which has stable filtration performance and long service life[9].

3.2 Automotive Glass Production Industry

As an important supporting material for automotive glass production, Sintered Metal Fiber Felt is mainly used in the heating, tempering and forming links of automotive glass. 310S stainless steel and FeCrAl sintered felt with high-temperature resistance are used to make roller covers and high-temperature protective pads, which can withstand the high temperature of 800-1000℃ in the tempering furnace, isolate the high temperature from eroding the roller body, and at the same time realize soft contact with the high-temperature glass blank, avoiding scratches and indentations on the glass surface, improving the qualification rate of finished products[8]. It is widely used in the production lines of mainstream automotive glass manufacturers such as Fuyao and Asahi Glass.

3.3 Petrochemical and Chemical Industry

In the petrochemical and chemical industry, Sintered Metal Fiber Felt is mainly used for the filtration of corrosive fluids, catalyst retention and recovery, polymer filtration and polyester melt purification. Nickel-based alloy and 316L stainless steel sintered felt have excellent corrosion resistance, which can resist the erosion of strong acids, strong alkalis and organic solvents, and are suitable for the filtration of crude oil, chemical reagents and other media. Its high dirt-holding capacity can ensure long-term stable operation of the filtration system, reduce the frequency of filter replacement, and improve production efficiency[5].

3.4 New Energy and Electronic Industry

In the new energy field, titanium and nickel-based alloy Sintered Metal Fiber Felt are used as gas diffusion layers for fuel cells, with excellent conductivity, corrosion resistance and permeability, which can improve the efficiency and service life of fuel cells[11]. In the electronic industry, it is used for electromagnetic shielding and high-temperature dust removal of electronic equipment, effectively reducing electromagnetic interference and ensuring the stable operation of equipment.

3.5 Other Industrial Fields

Sintered Metal Fiber Felt is also widely used in aerospace, biomedical, food and beverage and other fields. In the aerospace field, it is used for high-temperature filtration and thermal insulation of aerospace equipment, with excellent high-temperature resistance and light weight characteristics[6]; in the biomedical field, titanium sintered felt with good biocompatibility is used for medical equipment and tissue engineering scaffolds; in the food and beverage industry, 316L stainless steel sintered felt is used for food and beverage filtration, meeting food safety standards and ensuring product purity[5].

4. Product Advantages and Why Choose Us

As a professional manufacturer of Sintered Metal Fiber Felt, we have years of R&D and production experience, focusing on providing high-quality products and personalized solutions for global customers. Our product advantages are as follows:

• Strict Quality Control: We adopt advanced sintering equipment and standardized production processes, from raw material selection to finished product inspection, every link is strictly controlled. All products pass ISO 9001 quality system certification, ensuring stable product performance and consistent quality[7].

• Complete Product Range: We cover all types of Sintered Metal Fiber Felt, including stainless steel, FeCrAl, nickel-based alloy, titanium and other materials, which can meet the needs of different industries and working conditions. We can also provide one-stop customization services, from product design to finished product processing, to solve your personalized needs[11].

• Professional R&D Team: We have a professional R&D team, focusing on the research and development of high-performance Sintered Metal Fiber Felt products, and can continuously optimize product performance according to the development trend of the industry and customer needs, providing you with more advanced and reliable products[5].

• Global Service Capacity: We have rich export experience, can provide professional English technical support and after-sales service, and customize packaging and delivery solutions according to the needs of customers in different countries and regions, ensuring timely delivery and safe transportation. We have established long-term cooperative relations with customers in Europe, America, Southeast Asia and other regions.

Sintered Metal Fiber Felt, as a high-performance industrial material, has broad application prospects in global industrial fields. Whether you are engaged in high-temperature filtration, automotive glass production, petrochemical industry or other fields, we can provide you with the most suitable Sintered Metal Fiber Felt products. Welcome to contact us for more product details, quotes and samples, and we look forward to cooperating with you to create a better future!
