Heat Transfer Printing Belt

Specification

Raw Material: 100% Nomex

Working Temperature: 180-230℃

Thickness : any thickness could be customized

Color: off white

Click directly to send a message via WhatsApp

Inquire

A^-A⁺

Description Inquire

HEAT TRANSFER PRINTING BELT

Our blankets are made of imported high-temperature resistant aramid fiber, the intermediate base fabric is a seamless endless base fabric, the dry heat shrinkage of the width is 2.5%, the length elongation is 3%, the use temperature is below 250 ° C, the conventional thickness is 8mm, and the weight is 3200g / ㎡, other thickness also could be produced as your demands. It is a special blanket for digital/roll to roll transfer printing machines such as various fabrics, curtain fabrics, mousepads, webbing zippers, etc., suitable for various domestic and foreign heat transfer printing machines. All sizes support customization.

Features

1. Misaligned----Our base cloth is use endless industrial silk. The testing report showed the misaligned rate is about ±3mm. enclosed our base cloth for your consideration

2. Shrinkage----The base cloth can control the shrinkage rate in 2.5%--3%.

3. Material---100% DUPONT Nomex.

Specification

Product Name

Raw Material

Length/M

Width/M

Thickness/MM

Weight/g/m

Dry Heat Shrinkage of the width

Elongation of length

Heat Transfer Printing Belt

100% Nomex or mix material

Max 50

Max 4.2

3-12

1200-4800

2.5%

Application: suitable for all kinds of transfer printing machine, roll to roll transfer printing machine, digital transfer printing machine

All the sizes could be customized made

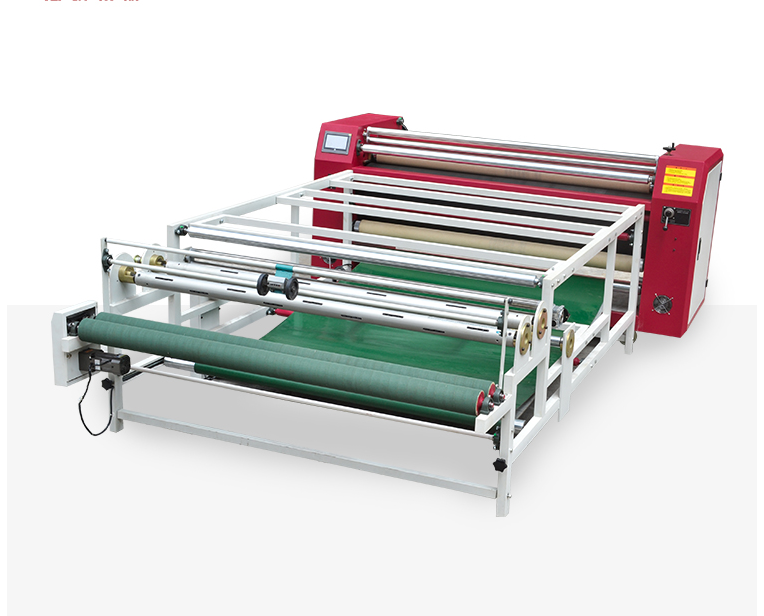

PRODUCT PICTURE

PRODUCE PROCESS

PACKAGE & DELIVERY
